Electrical Diagrams

Within this section are scanned diagrams of the ELECTRICAL SYSTEM as per the Service Manual for the 73 Nova.

General 'Chevrolet' Diagrams

  • Electrical Wire/Circuit Identification - Page 1 & Page 2

  • Engine Compartment Electrical

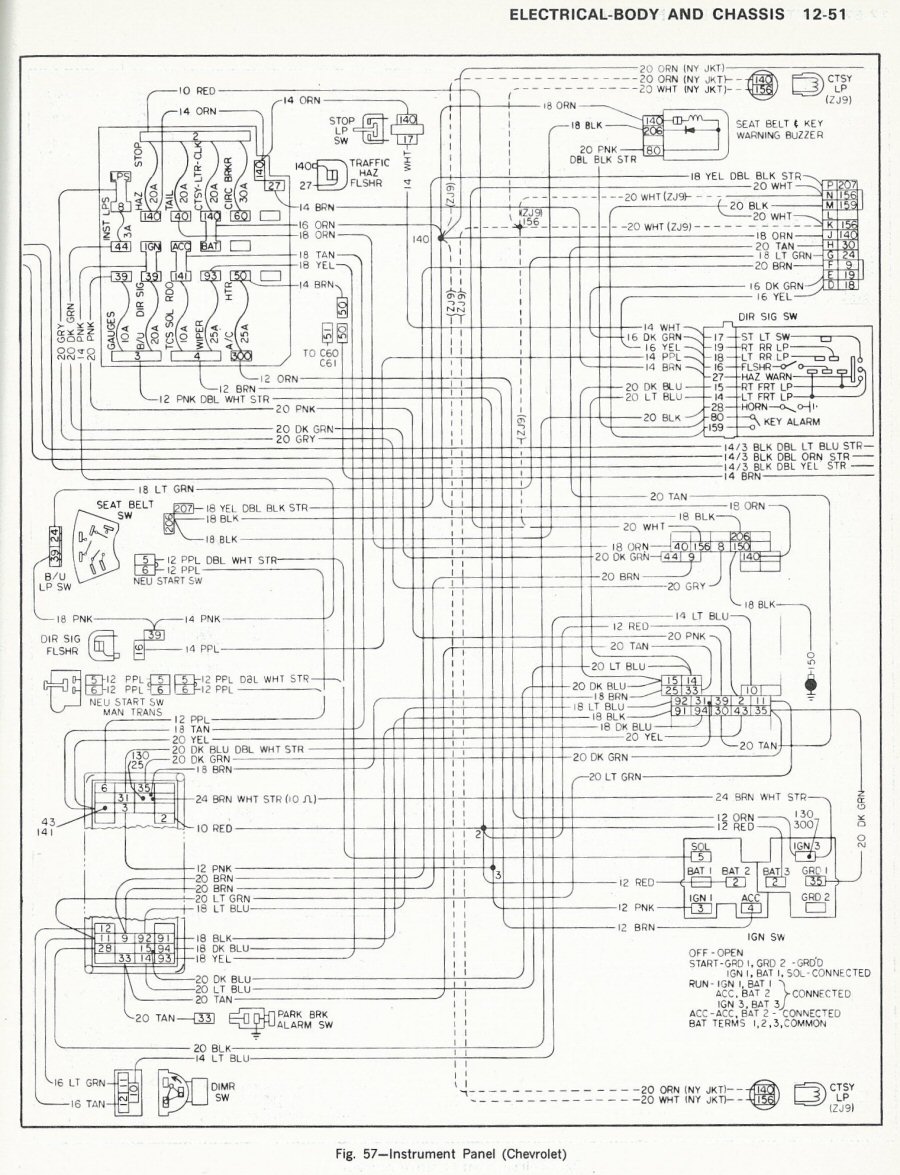

  • Instrument Panel Electrical
  • Instrument Cluster Electrical
  • Body & Rear Lighting
  • Air Conditioning
  • Cruise Master & Power Tailgate

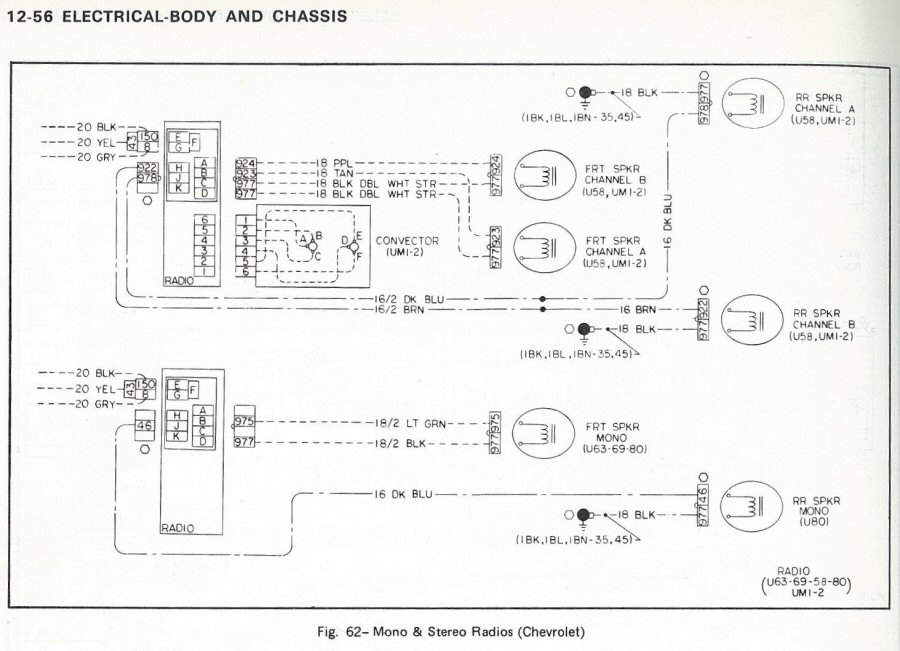

  • Mono & Stereo Radios
    		• Nova Diagrams

  • Engine Compartment Electrical
  • Instrument Panel Electrical
  • Instrument Cluster Electrical

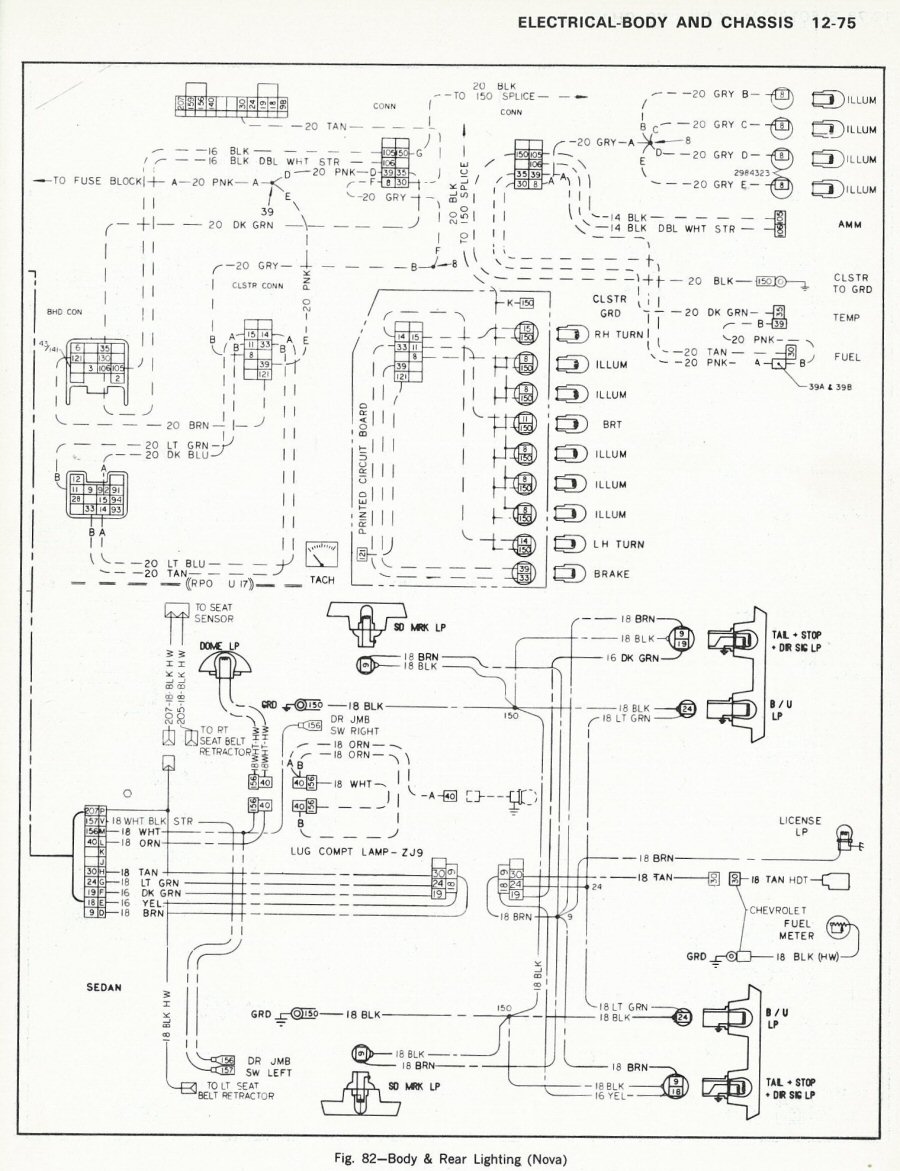

  • Body & Rear Lighting
  • Optional Circuits
